20A PWM Charge Controller

20A 12V.jpg

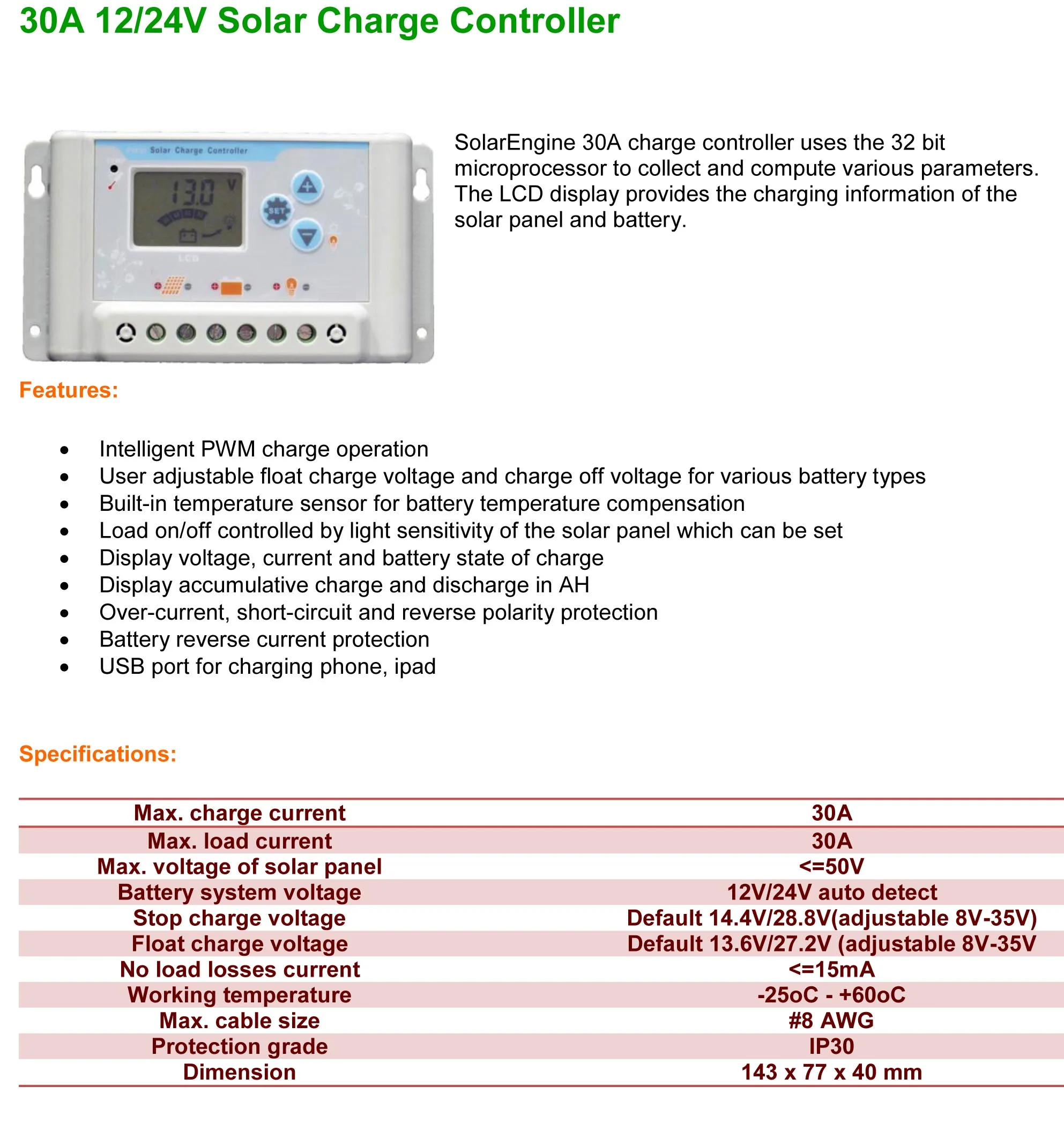

30A PWM Charge Controller

30A 12V.jpg

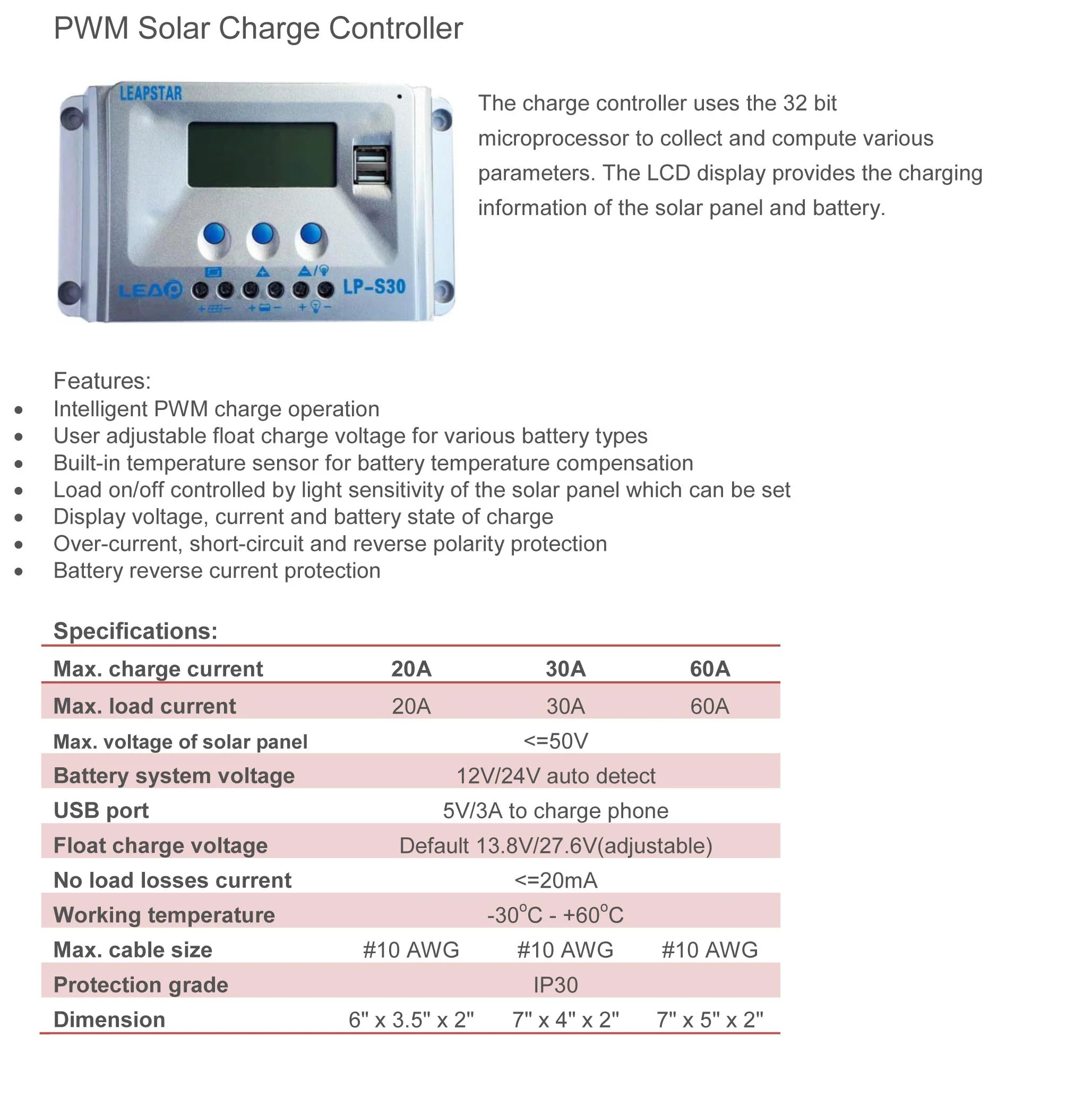

20A 30A 60A PWM Controllers with USB

PWM Solar Charge Controller.jpg

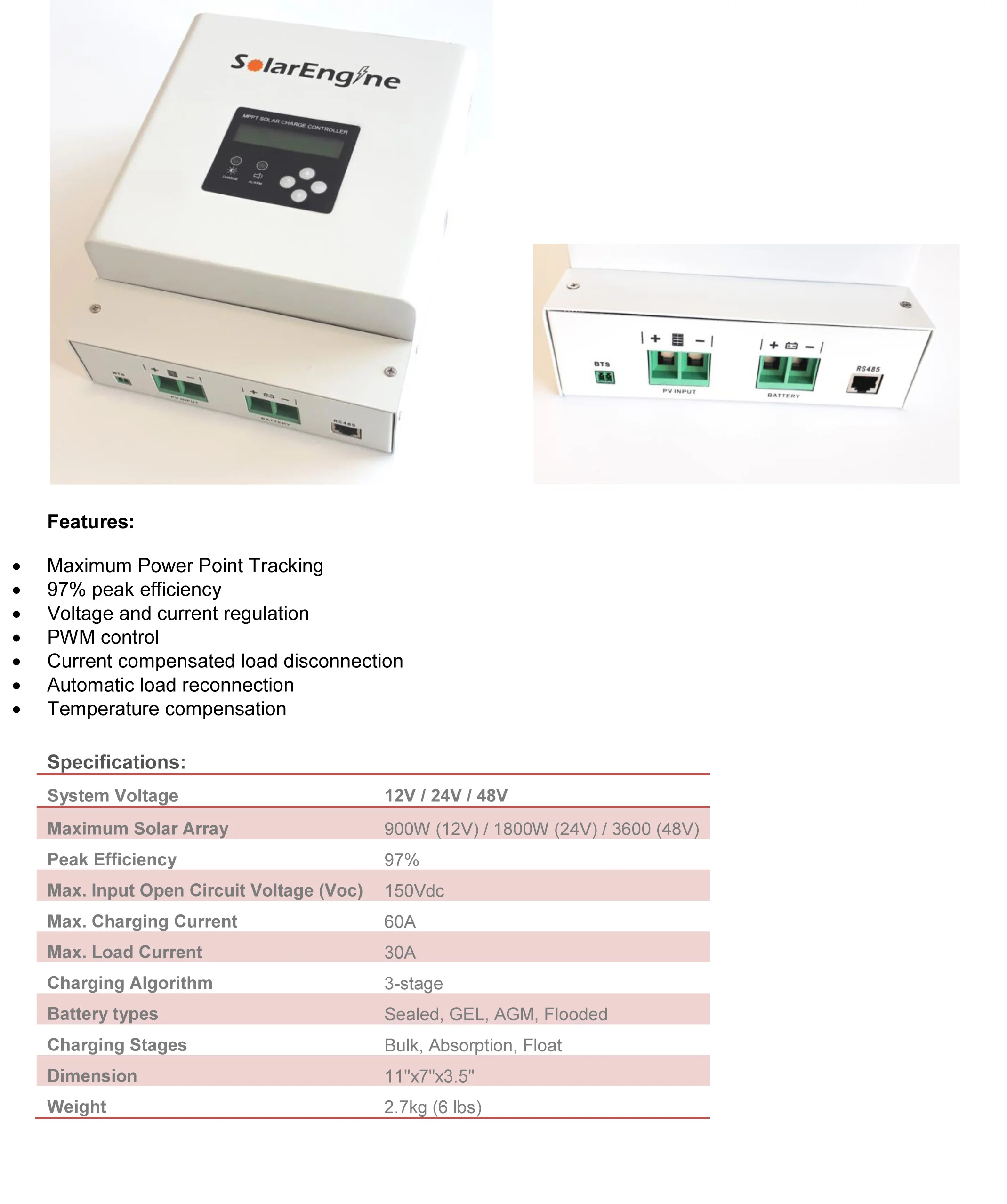

60A 150V MPPT Charge Controller

SolarEngine MPPT solar charge controller is an advanced MPPT controller for off-grid photovoltaic system. The controller provides a high peak efficiency of 97%.It features a smart tracking algorithm that maximizes the energy harvest from the solar panels by rapidly finding the solar array peak power point with extremely fast sweeping of the entire I-V curve. It increases the output of the solar array up to 30% compared to non-MPPT charge controllers.

It can charge 12V, 24V or 48V battery bank from solar panels up to 150V. Multiple controllers can be connected in parallel for a large system to charge the same battery bank.

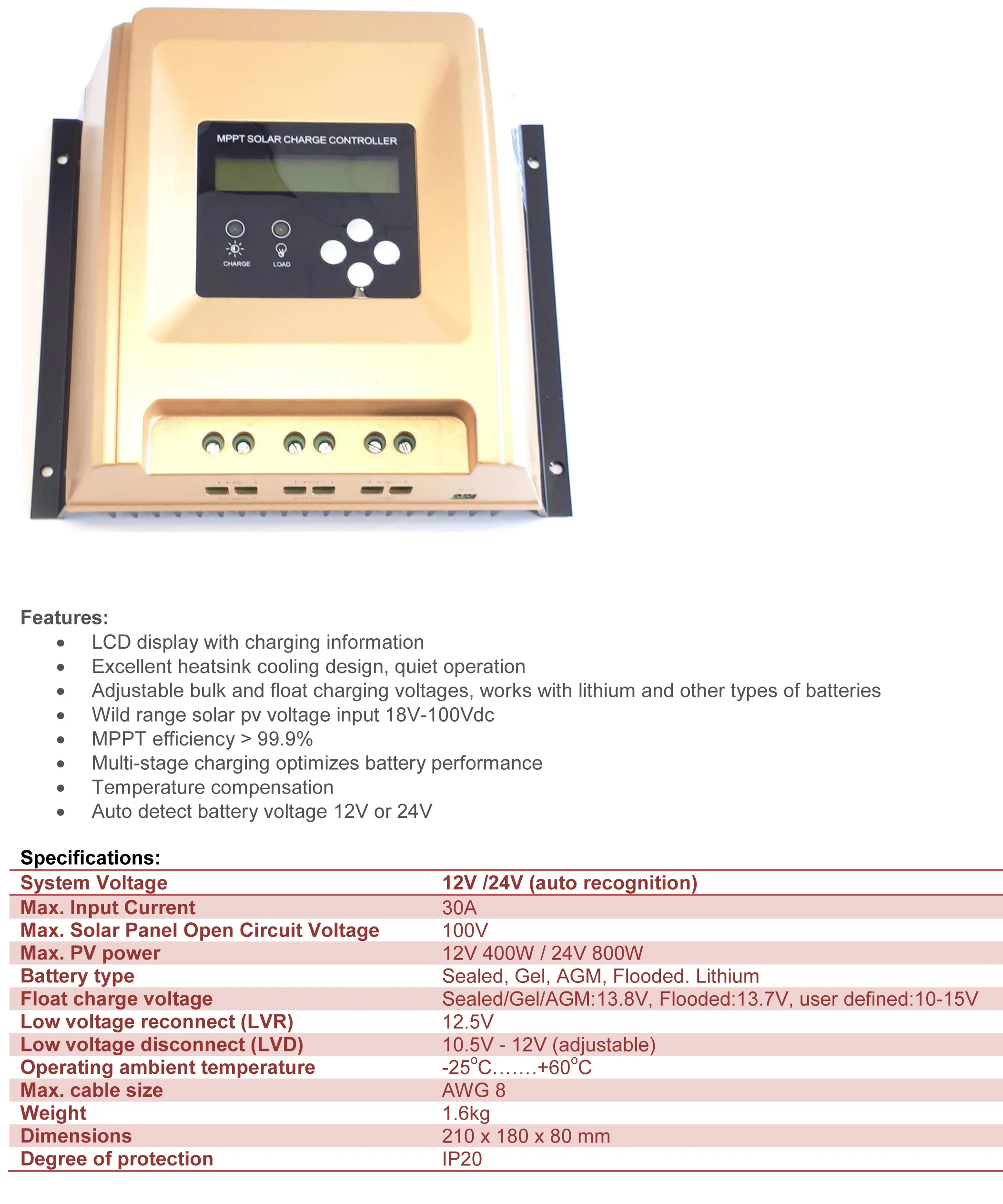

30A 100V MPPT Charge Controller
